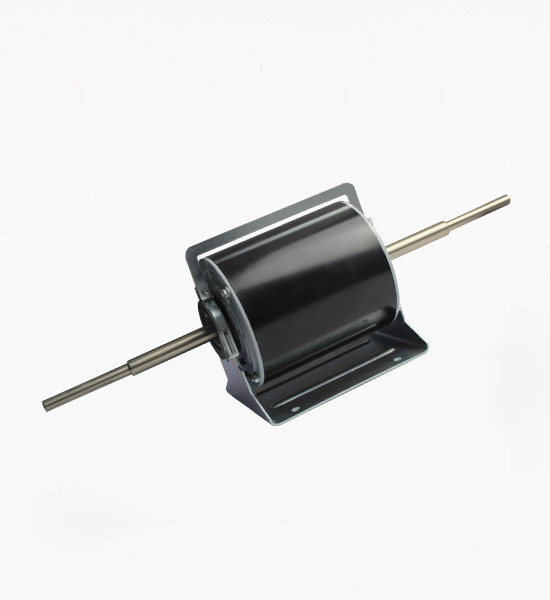

139-B系列单相电容运转异步电动机
外形尺寸：
主要技术数据Main technical data
|
电机型号 |
工作电源Electrical Rating (V/Hz) |
功率Power (W) |
电流(A) |
转速rpm |
电容(μF) |
|
YSK-120W-6P |
220V/50Hz |
120 |
1.2 |
850/750/650 |
6 |
|
YSK-150W-6P |
220V/50Hz |
150 |
1.3 |
850/750/650 |
8 |
|
YSK-200W-6P |
220V/50Hz |
200 |
1.8 |
900/800/700 |
10 |
|
YSK-250W-6P |
220V/50Hz |
250 |
2.2 |
900/800/700 |
10 |
|
YSK-300W-6P |
220V/50Hz |
300 |
2.7 |
920/810/730 |
10 |
|
YSK-370W-6P |
220V/50Hz |
370 |
3.3 |
930/820/730 |
12 |
|
YSK-550W-6P |
220V/50Hz |
550 |
5.0 |
900/820/730 |
15 |
|
YSK-750W-6P |
220V/50Hz |
750 |
6.5 |
900/820/730 |
20 |
|
YSK-120W-4P |
220V/50Hz |
120 |
1.1 |
1150/1000/850 |
8 |
|
YSK-150W-4P |
220V/50Hz |
150 |
1.2 |
1150/1000/850 |
8 |
|
YSK-200W-4P |
220V/50Hz |
200 |
1.6 |
1200/1050/900 |
12 |
|
YSK-250W-4P |
220V/50Hz |
250 |
2.0 |
1200/1050/900 |
12 |
|
YSK-300W-4P |
220V/50Hz |
300 |
2.5 |
1200/1050/900 |
15 |
|
YSK-450W-4P |
220V/50Hz |
450 |
3.6 |
1250/1100/950 |
18 |
|
YSK-550W-4P |
220V/50Hz |
550 |
4.7 |
1250/1100/950 |
20 |
|
YSK-750W-4P |
220V/50Hz |
750 |
6.0 |
1300/1150/1000 |
25 |
注：以上参数是我司常用的具有代表性的规格，可按客户机组进行优化匹配，也可生产特殊要求的产品，如：100-120V、200V-240V、50/60Hz。
Notes: The above mentioned specification is representative specification. The specification can also be designed and manufactured according to customers requirement
The products of 100-120V，200-240V，50/60Hz can also be supplied as requested;
